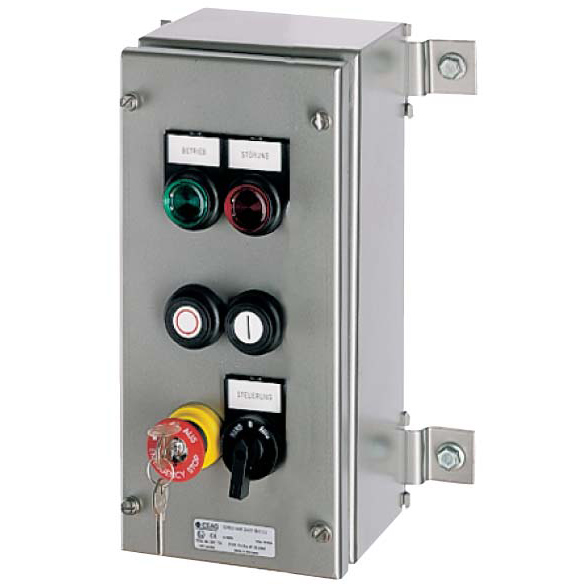

CEAG control stations can be combined according
to customers' specifications. Quick fixing
allows up to three CEAG built-in components,
such as signal lamps, pushbuttons and switches,
to be snapped on a rail in the enclosure.
The enclosures consist of low-temperature
impact-resistant thermoplastic which fulfils the
requirements of EN 60079 and provides a high
resistance to chemicals. The well thought out
design with low side walls allows optimum cable
connection. The components can be snapped
out of the enclosure to facilitate cable-entry
feeding. Notches in the mounting rails prevent
the built-in components from being twisted out
of place.
CEAG's optional mounting plates offer a timesaving
fixing technique. Coupling pieces link
enclosures to each other and prevent them from
being twisted out of place. Alternatively, metal
screws and flanges can be used for mounting –
the metal flanges also enable external earthing.
The built-in components differ in size.
The diverse enclosure types allow variable
combinations of these components. Example
diagrams of the enclosure types show the
placement options for the built-in components
with numbers or predefined positions.
Free mounting areas can be provided for
retrofitting certified CEAG components. These
are then factory sealed with blanking elements.
