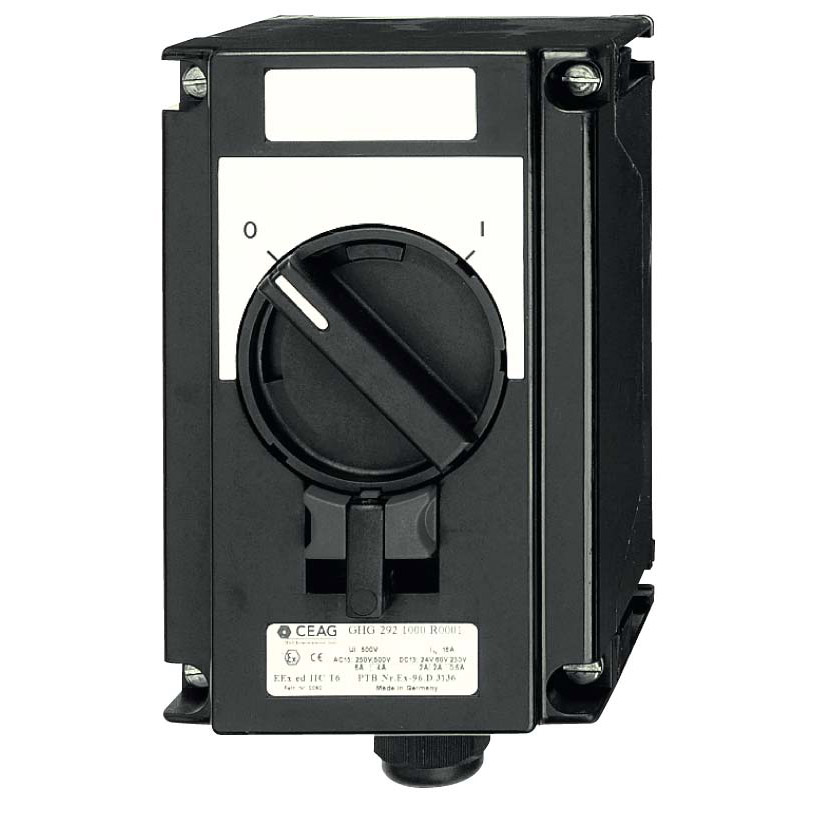

The new GHG 29 control switch series features
an easy-to-install and easy-to-connect design.
This control switch can be implemented with
up to 6 contacts and for 2 to 5 switch positions.
Thus, practically all applications in modern
control engineering can be covered. Contacts
are protected against contact to VBG 4 and
have a terminal cross section of up to 6 mm2
for the connection of single and multi-wire
conductors. The rated current of the control
switch at 500 V is 16 A. The external contours
of the enclosure facilitate access to the connection
terminals and thus allow easy installation.
Further installation advantages result from the
snap-on/snap-off switch contact block and
measuring instrument.
A labyrinth seal in the cover guarantees the
degree of protection IP66. The impact-resistant,
glass-fibre-reinforced polyester enclosure
material is a prerequisite for withstanding even
the most rugged industrial operating conditions.
The switch can be padlocked using the
inte grated locking facility.
The locking position is indicated by a red pin.
An interchangeable apparatus label and a
neutral switch-position label are supplied with
each switch.
With CEAG installation system, control switches
can be installed with high cost-efficiency.
The control switches are also available on
request with snap-on metal or moulded-plastic
flanges.
