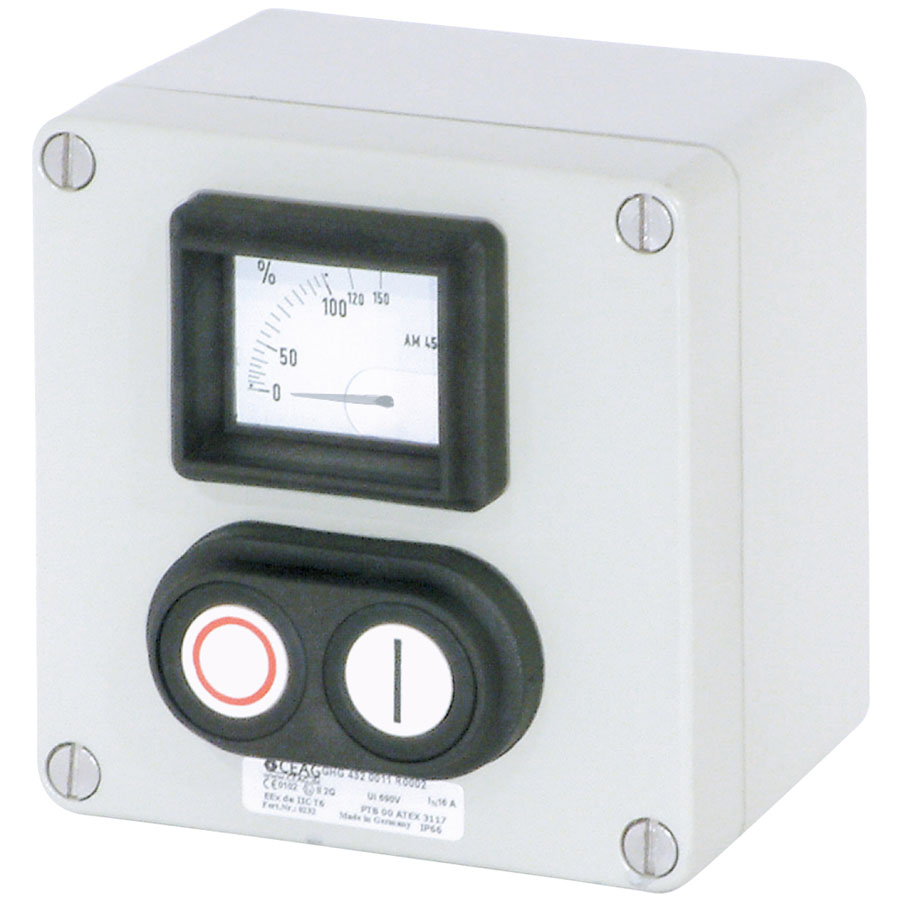

Light-alloy control stations in explosionprotected
design are equipped with up to four
components. These control stations are made
of high-quality cast aluminium-silicon (AlSi).
A robust plastic powder coating according to
RAL 7031 protects the CEAG control stations
against aggres sive atmospheres and chemicals.
Cover screws as well as all internal and external
metal parts are made of stainless steel. CEAG
flameproof built-in components, such as signal
lamps, pushbuttons and switches, provide
snap-on mounting on rails screwed into the
enclosures.
To facilitate insertion of cables into the entries,
the built-in components can be snapped out of
the enclosures. Notches in the mounting rails
define the position of the built-in components
and prevent them from being twisted out of
place.
Free mounting areas can be provided for
retrofitting certified CEAG components. These
are then factory sealed with blanking elements.
