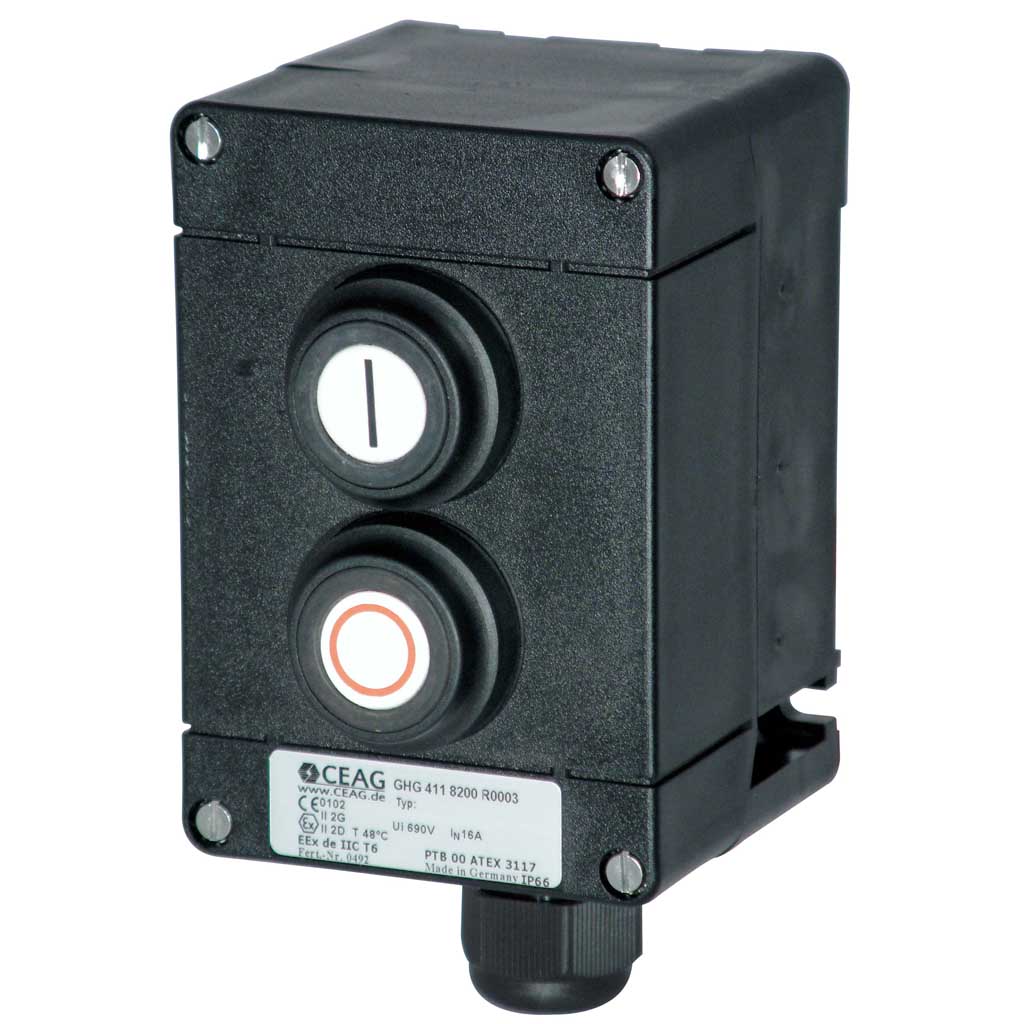

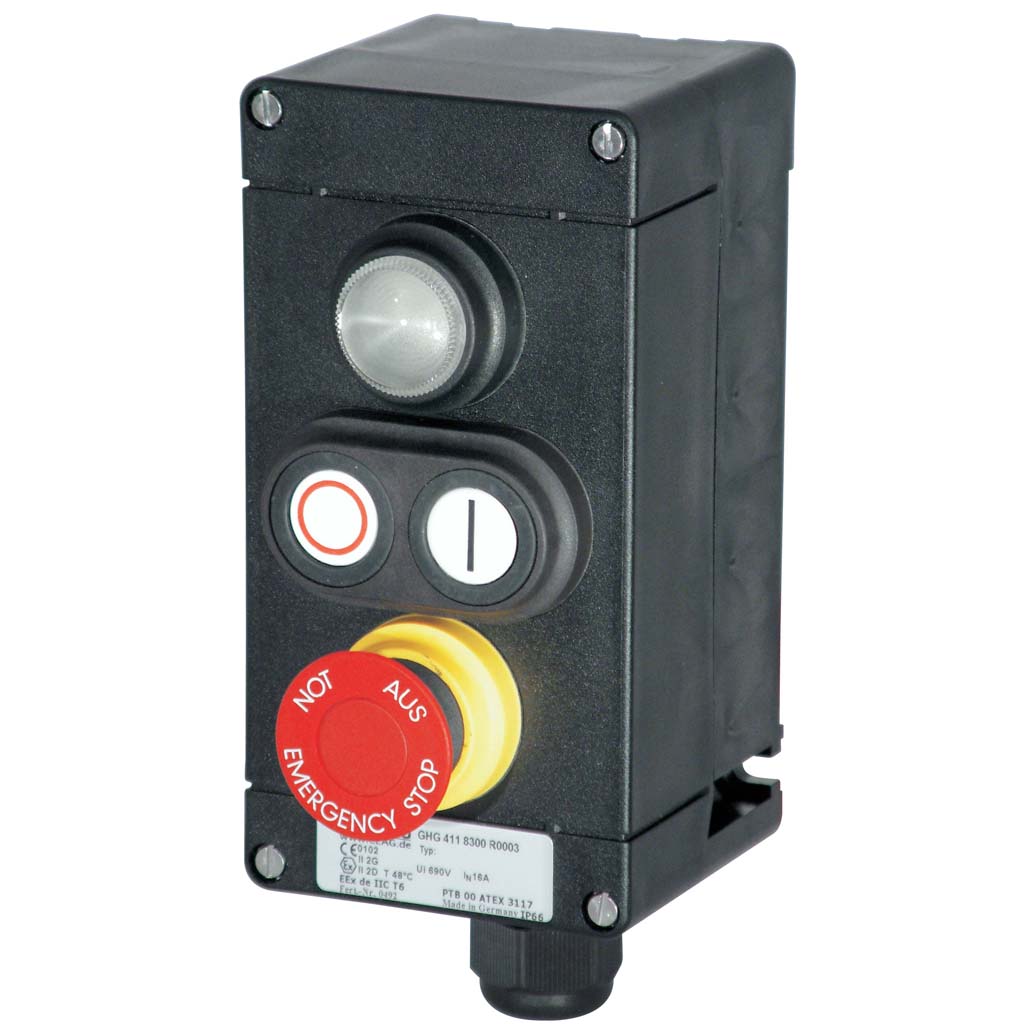

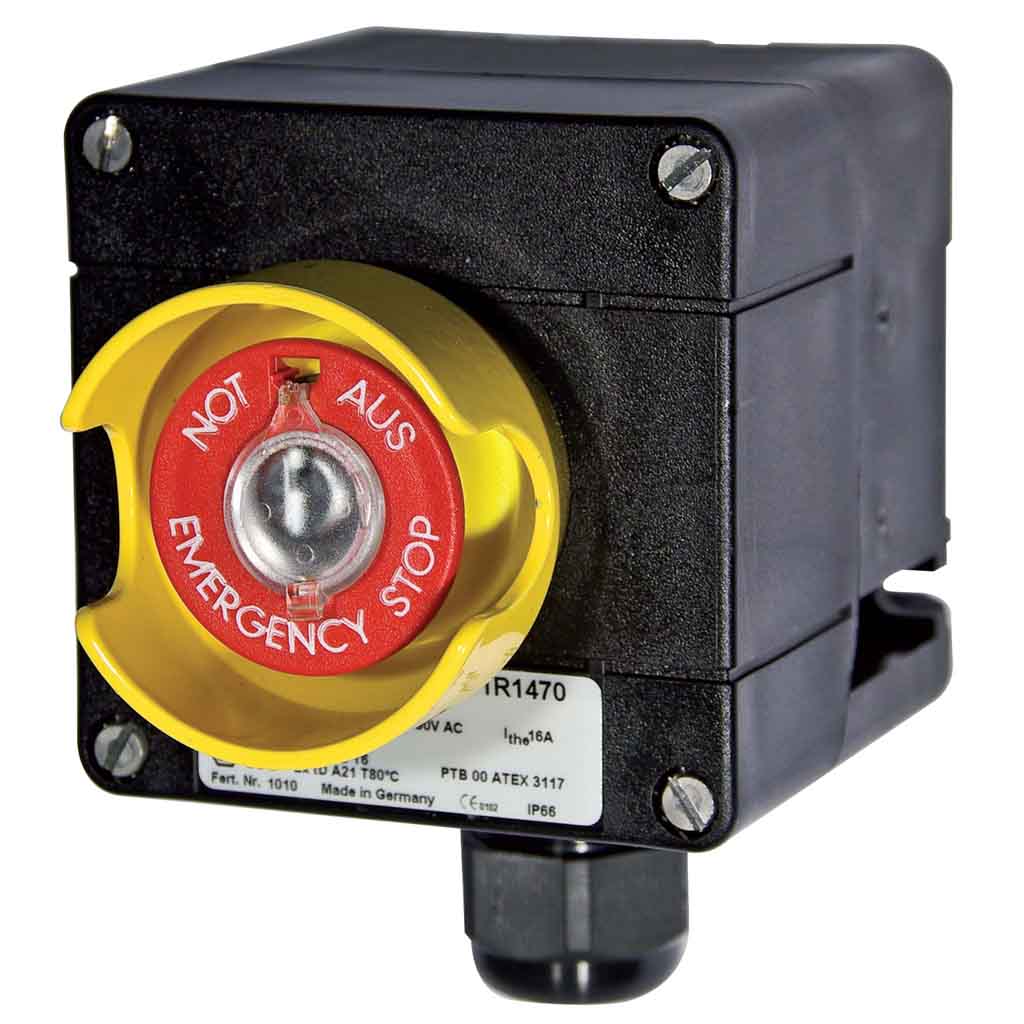

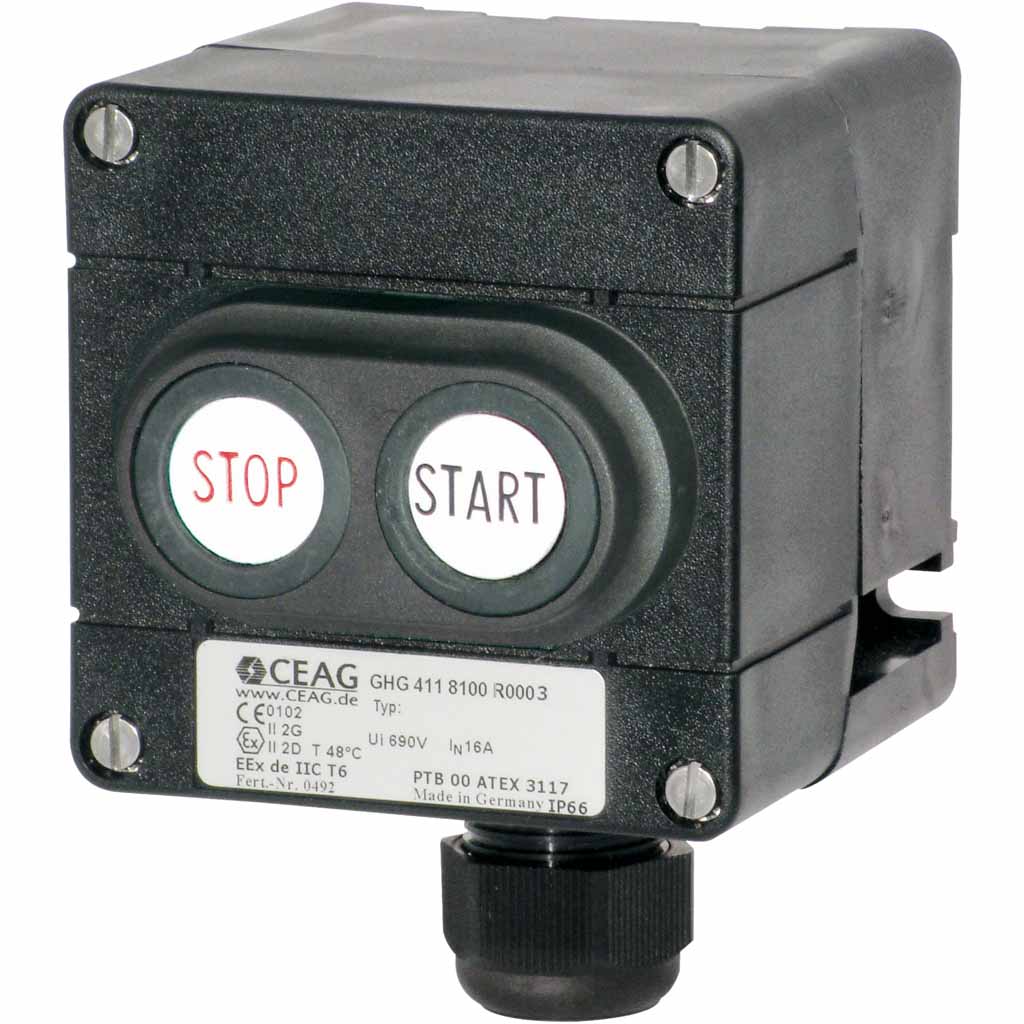

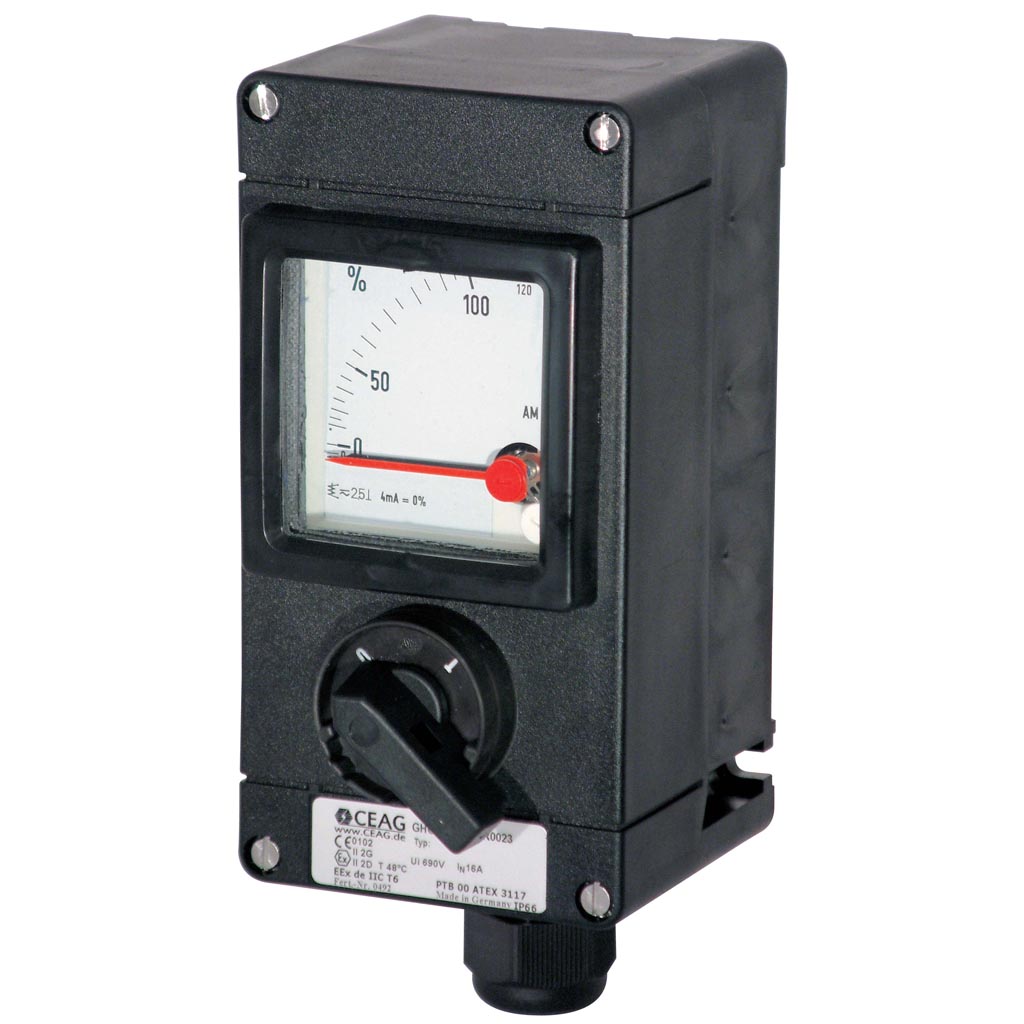

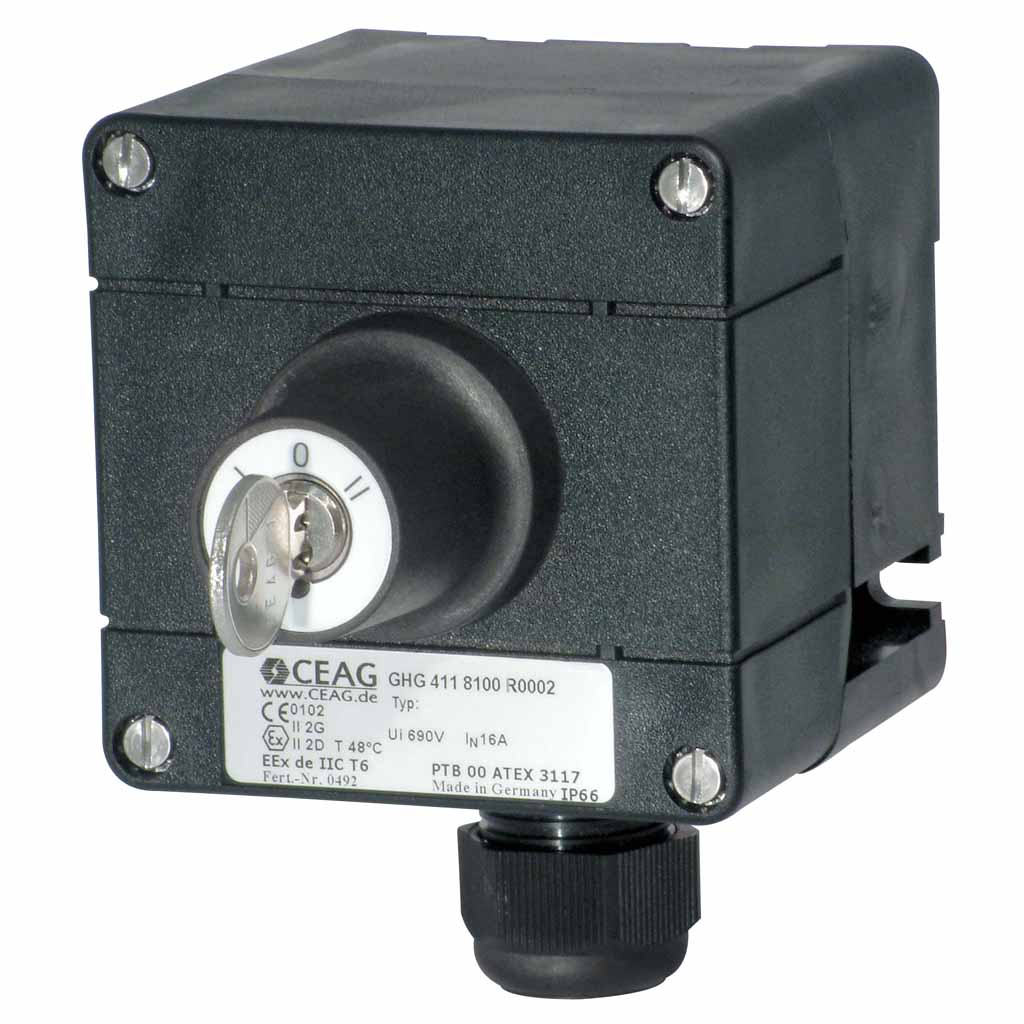

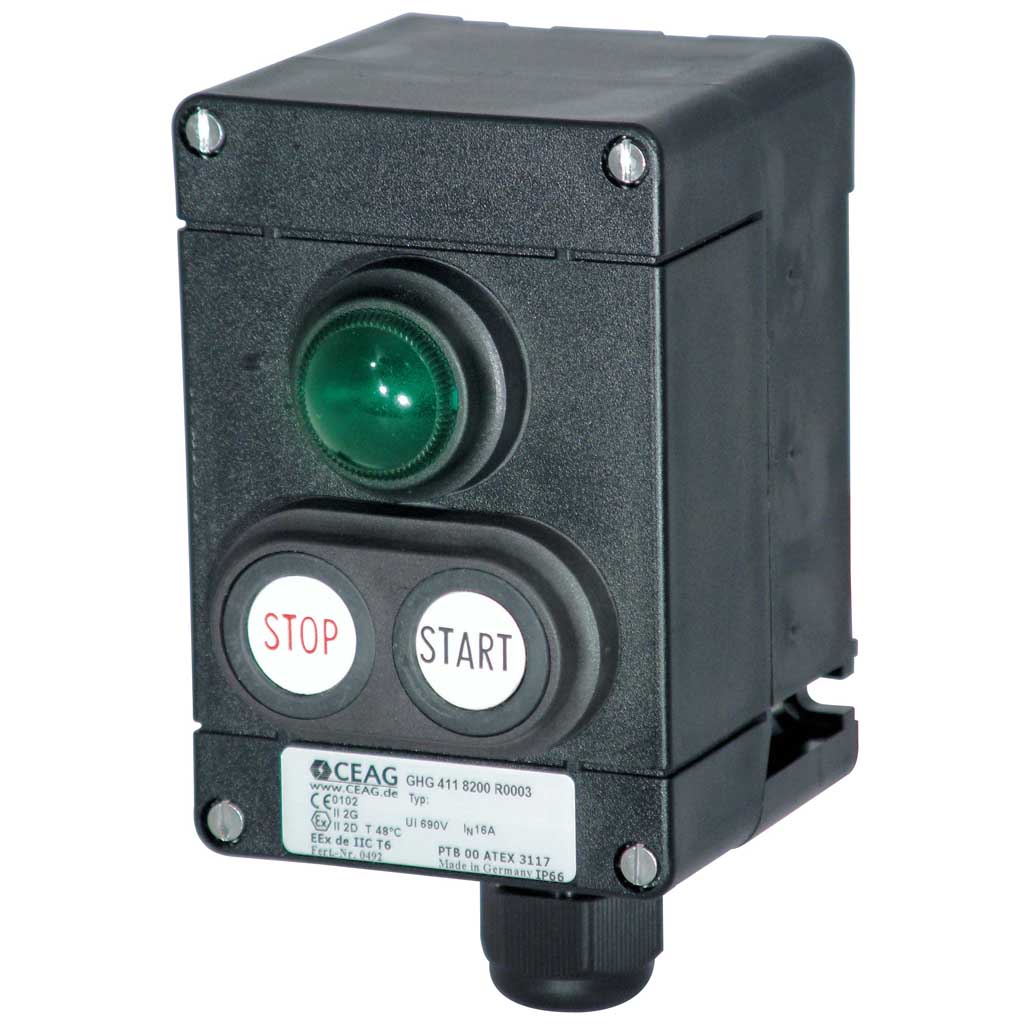

Even under the most adverse conditions, CEAG
control stations can be used and operated reliably.
The enclosures consist of low-temperature
impact-resistant thermoplastic which fulfils the
requirements of EN 60079 and provides a high
resistance to chemicals. The well thought out
design with low side walls allows optimum cable
connection. Quick fixing allows up to three
CEAG built-in components, such as signal
lamps, pushbuttons and switches, to be
snapped on a rail in the enclosure. They can
be snapped out of the enclosure to facilitate
cable-entry feeding. Notches in the mounting
rails prevent the built-in components from being
twisted out of place. Wall mounting can be
carried out via easily accessible fixing apertures
when the enclosure cover is sealed. CEAG
mounting pla tes offer a time-saving fixing
tech nique. CEAG control stations feature
standard M25 moulded-plastic cable entries
with an 8 to 17 mm clamping diameter.
Coupling pieces link enclosures to each other
and prevent them from being twisted out of
place. Alternatively, metal screws and flanges
can be used for mounting – the metal flanges
also enable external earthing.
Free mounting areas can be provided for
retrofitting certified CEAG components. These
are then factory sealed with blanking elements.
