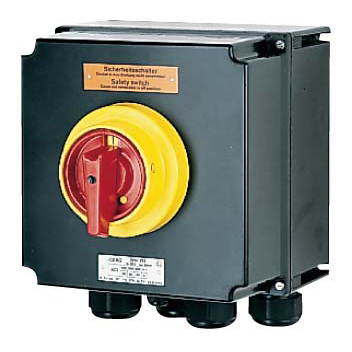

CEAG safety switches can be protected against
inadvertent switching on by our integrated
locking facility for up to three padlocks in the
OFF position. To prevent manipulations, the
enclosure covers cannot be opened in the
locked position without destroying the enclosure
itself.
All CEAG safety switches feature full AC-3 motor
switching capacities and isolating properties
according to EN 60947-4-1 with compulsory
opening of the main current contacts; optional
EMERGENCY STOP versions according to
EN 60204-1 are also available.
Additional lagging/leading auxiliary contacts
guarantee double safety for extreme switching
conditions.
The safety switches feature an installationfriendly
design and easily accessible connection
terminals.
Versions in impact-resistant polyamide or glassfibre-
reinforced polyester enclosures provide
the high degree of protection IP66 for safety
switches up 180 A. These can be optionally
supplied with snap-on moulded plastic or
brass flanges. Safety switches for amperages
up to 630 A are supplied in metal enclosures.
These can be equipped with screw-on flanges.
The described safety switches at the sizes
210 - 630 A are also available for Explosion
Group IIB, which is sufficient for many of
the applications.
